Product Details

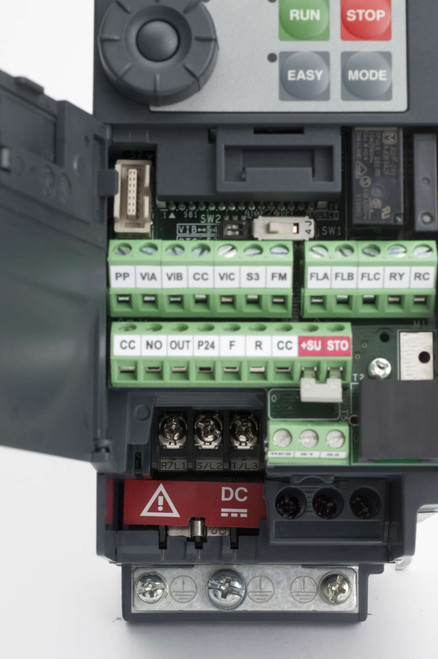

The S15 adjustable speed drive is a compact and high performance adjustable speed drive designed for controlling a wide range of variable and constant torque applications for multiple industries. This micro adjustable speed drive is capable of working with permanent magnet (PM) motors, which allows a much greater flexibility in selecting a motor for an application. In addition, expanded PID control allows a greater level of precise control and operation of difficult level control applications. Noother micro adjustable speed drive delivers such reliable performance and extensive capabilities at such a competitive cost.
Product Scope
200 to 230 V at 0.5 to 20 HP
380 to 460 V at 0.5 to 20 HP
525 to 600 V at 2 to 20 HP
Single Phase
200 to 230 V at 0.25 to 3 HP
Highlights
• 110% Continuous Overload Rating, 150% for 60 Seconds
• Three Programmable Discrete Outputs: One Form-A, One Form-C, & One Open Collector
• Six Programmable Discrete Inputs
• One Programmable Analog Outputs: 4 to 20 mA or 0 to 10 VDC
• Three Programmable Analog Inputs: One 4 to 20 mA Input, One 0 to 10 VDC Input, & One ±10 VDC Input
• Ten Year Life-Long Design
• Compact Design
• Capable of Working with Permanent Magnet (PM) Motors
• Safe Torque Off (STO) Compliant
• Auto-Restart Operation/Catch a Spinning Motor
Standard Features
• IP20 Enclosure; Wall-Mount
• Past Trip Monitoring: Stores the Last Eight Faults in Succession, Along with At-Trip Operation Data
• Rotary Encoder
• EOI: Four-Digit/Seven-Segment LED Display
• Ambient Temperature: 14° to 122°F (-10° to 50°C)
• Humidity: 95% Non-Condensing
• Altitude: Up to 1000 Meters without Derate
• Two-Wire RS485 Communication Port
• Compliances: UL Listed in US & Canada, CSA® & CE®
Specifications
-
Horsepower
3 HP
-
IP Rating
IP20
-
Series
ASD S Series
-
Voltage
230
