Product Details

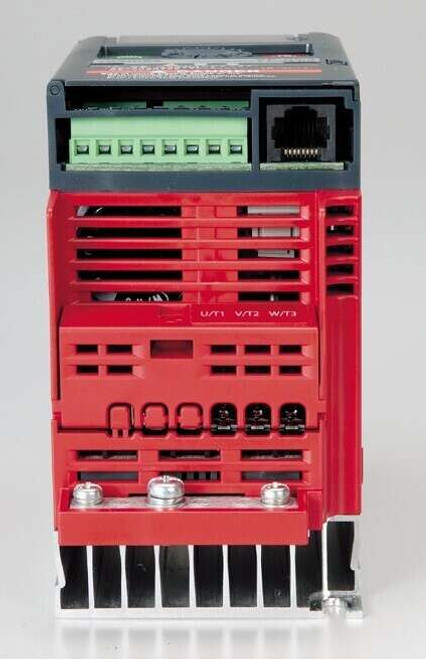

The nC3 ASD is a RoHS compliant nano-sized adjustable speed drive with a full range of features to meet the demands of most 120/220 V industrial or HVAC applications. The nC3 may be operated from either a single or three- phase power source and is a reliable option for OEMs, allowing for easy installation and drop-in replacement for starters. The nC3 is side-by-side mountable and its vertical construction allows for an impressively small footprint.
Product Scope
200 to 230 V at 0.5 to 5 HP
Single Phase
200 to 230 V at 0.5 to 3 HP
120V at 0.5 to 1 HP (Three-Phase 230VAC Output)
Highlights
• Powerful, User-Friendly, Long-Life Nano-Sized Drive
• Features Include:
- Automatic Torque Boost
- Vector Control
– PID
– DC Braking
– Automated Cooling Fan Control
– Parts Replacement Alarm
• Modbus RTU Communication with RS485
• Options Include:
- EMC Plate
- Remote Keypad IP54 Rated
- DIN Rail
- LCD Parameter Writer
Specifications
-
Horsepower
1 HP
-
IP Rating
IP20
-
Phase
1 Phase
-
Series
ASD S Series
-
Voltage
120
