Product Details

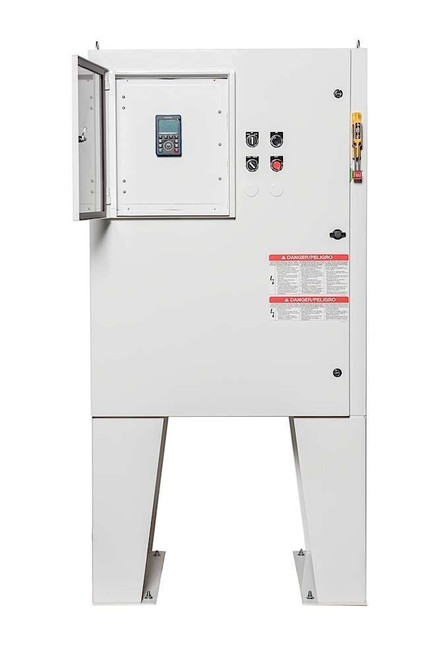

The durable AS3P adjustable speed drive outdoor assembly is a short lead time product available at low
costs by utilizing a standardized design and options. These include line reactors, surge arrestors and a maximum of four door-mounted control options. All units have a NEMA 3R outdoor rated free standing enclosure.
Product Scope
• 380 to 460 V at 7.5 to 450 HP HD (10 to 500 HP ND)
Highlights
• Dual Rating through Parameter Change (Heavy Duty and Normal Duty)
- Heavy Duty 150% Overload for 60 Seconds
- Normal Duty 120% Overload for 60 Seconds
• Eight Programmable Digital Inputs
• Three Programmable Digital Outputs: One Form-C Relay & Two Form-A Dry Contact Relays
• Three Programmable Analog Inputs: One 4 to 20mA, One 0 to 10 VDC, & One +10 VDC
• Two Programmable Analog Outputs: Both 4 to 20mA or 0 to 10 VDC
• Embedded STO Safety Terminal Compliant with IEC 61800-5-2 and SIL3 level in IEC 61508
• Two-Wire/Four-Wire RS485
• Built-in Dual Port EtherNet/IP®
• Embedded Web Server
• Real-Time Clock for Past Trip Monitoring or Calendar Functionality
• QR Code Display for Additional Parameter Information and Fault Troubleshooting
Standard Features
• NEMA 3R Outdoor Rated Enclosure Standard
• Ambient Temperature: 14° to 104°F (-10° to +40°C)
• Altitude: Up to 1000 Meters Without Derate
• Humidity: 95% Non-Condensing
• Advanced LCD Keypad with Capacitive Touch Wheel for Navigating and Programming
• Save, Restore & Clone Multiple Drive Settings
• Real Time Clock for Past Trip Monitoring or Calendar Functionality
• Built-Dynamic Braking Drive Circuit
Available Installed Options
• Input Line Reactor
• Surge Arrestor
• Door-Mounted Selector Switches
• Door-Mounted Push Buttons
• Door-Mounted Pilot Lights
• Cabinet Space Heater
Specifications
-
Enclosure
Type 3R
-
Horsepower
100 HP/125 HP
-
Series
ASD AS3 Series
-
Voltage
460
